Vertical Fiber Optic Splice Closure Mechanical Mini Inline Fiber Joint Box

Name: Vertical Fiber Optic Splice Closure Mechanical Mini Inline Fiber Joint Box
Brand: Twilight Optic
Price: 1 USD

Quality Vertical Fiber Optic Splice Closure Mechanical Mini Inline Fiber Joint Box wholesale

Brand Name : Twilight Optic

Model Number : GJS-D013

Place of Origin : China

MOQ : Negotiable

Price : Negotiable

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 Piece/Pieces per Week

Delivery Time : 10-15 work days

Packaging Details : Standard export carton packing.

product name : splice enclosure 48 cores

Dimension(mm) : 288mm x Φ178mm

Number of Splice Trays : 1~4ieces(12F/tray)

Number of Inlet/Outlet Ports : 4 Pieces( 4 x Round)

Diameter of Fiber Cable : Φ8mm~Φ18mm

Max capacity : 48Core

Contact Now

Fiber Mini Inline Closure 48 Cores Fiber Joint Box Universal Mechanical Vertical Splice Closure

Product Description

Optical splice closures are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. They are applicable to situations such as overhead, man-well of pipeline, embedded situation etc. Comparing with terminal box,the closure requires much stricter requirement of seal. Sealing ring and air valve are required for closure, but that are not necessary for terminal box.

Features:

1. The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.
2. The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment. The protection grade reaches IP68.
3. The closures are applicable to ribbon type optical cable and common optical cable.

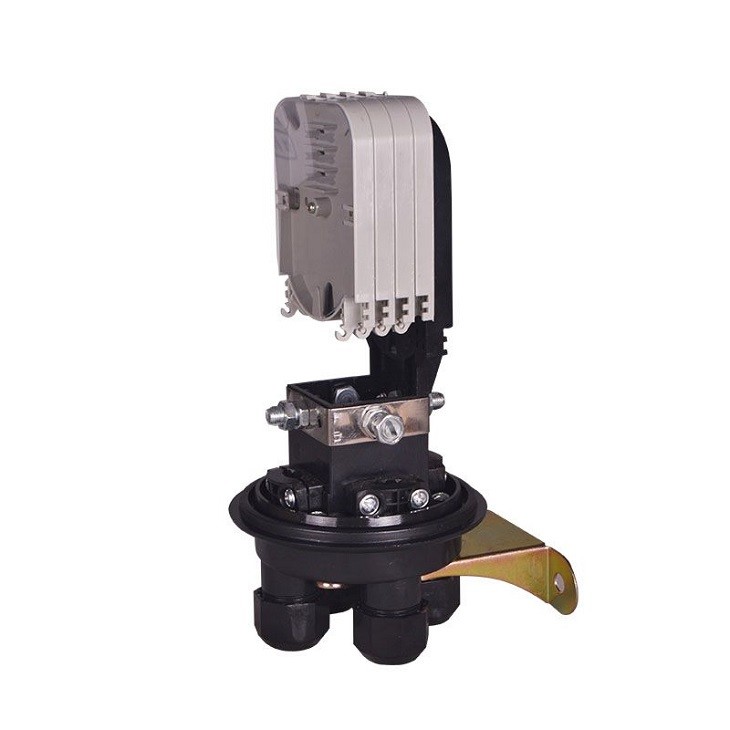

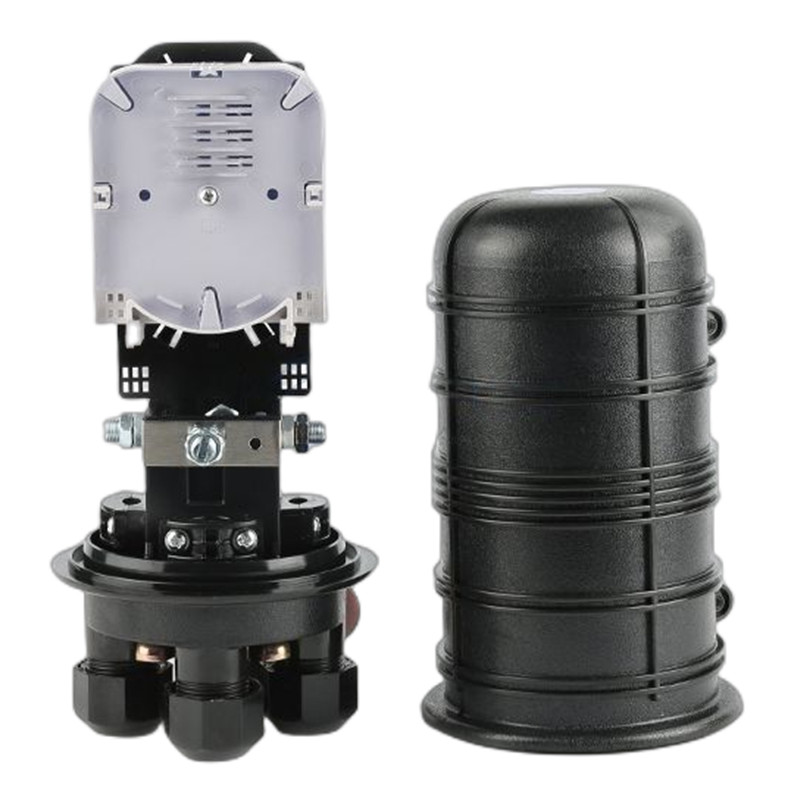

4. The splice trays inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40mm.Each optical cable and fiber can be operated individually.
5. The closure is of small volume, big capacity and convenient maintenance. The elastic rubber seal rings inside the closure are of good sealing and sweat-proof performance.
6. The casing can be opened repeatedly without air leakage. No special tools are required. The operation is easy and simple. The air valve is provided for the closure and used to check the sealing performance.

Application

1. Aerial cable installation
2. Pole mounted installation
3. Wall mounted installation
4. Man hole and hand hole installation
5. FTTH access laver

Model	GJS-D013
Type	Dome type
Sealing Structure	mechanical Seal
Number of Inlet/Outlet ports	4 ports
Cable Diameter	8-18mm
Maximum Capacity	48 fibers
Capacity per Splice Tray	12 fibers
Quantity of Splice Tray	4pcs
Body Material	PC
Sealing Material	Thermoplastic rubber
Assembling method	Aerial, direct buried, pipelined, wall mounting, manhole
Dimension	288(H)×178(D)mm
Net Weight	1.55~1.74KG
Temperature	-40℃~65℃
